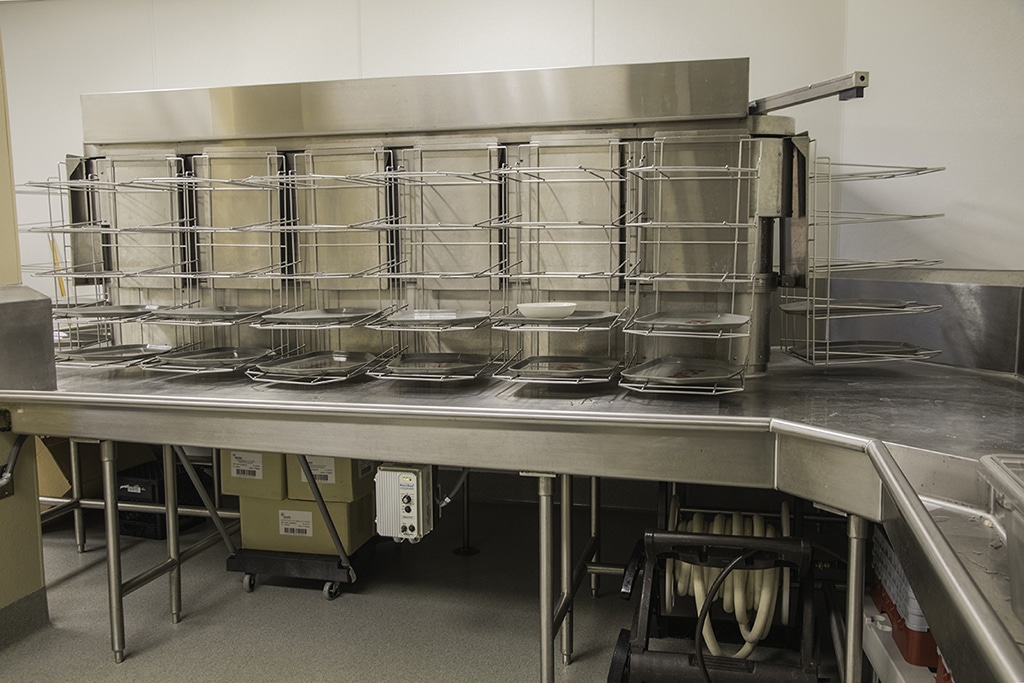

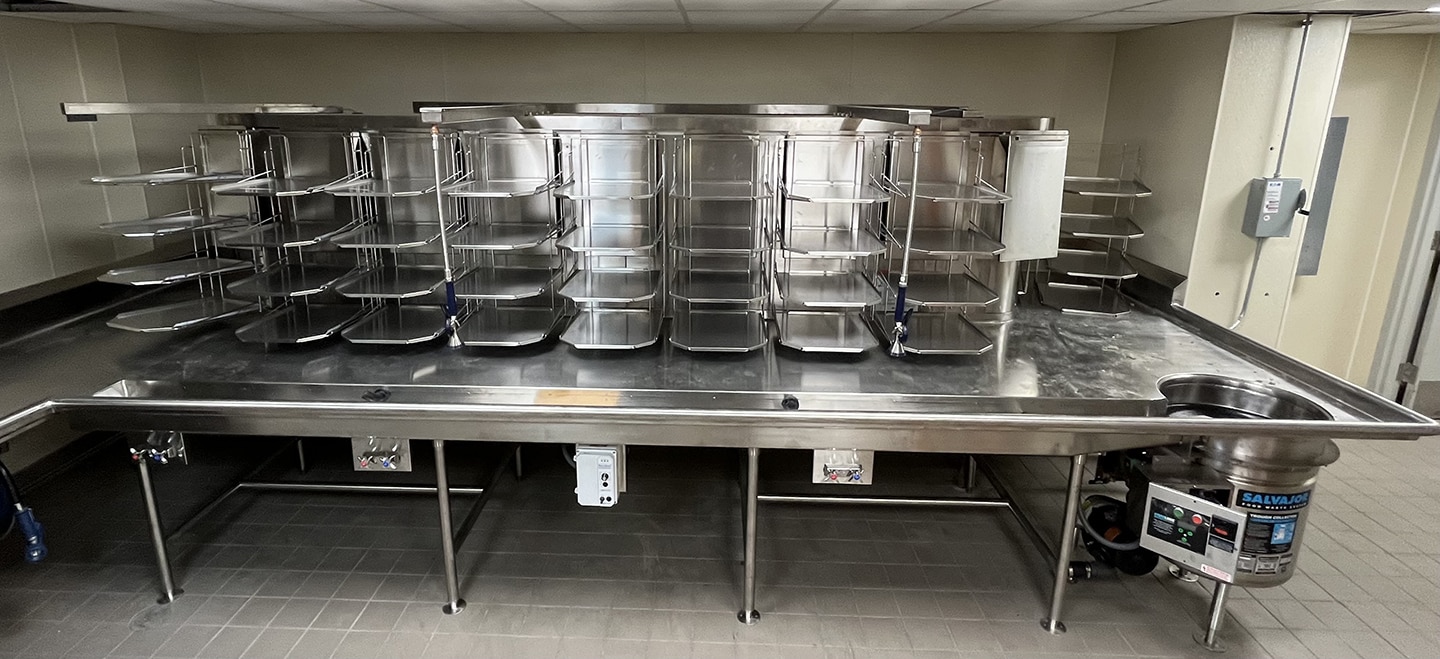

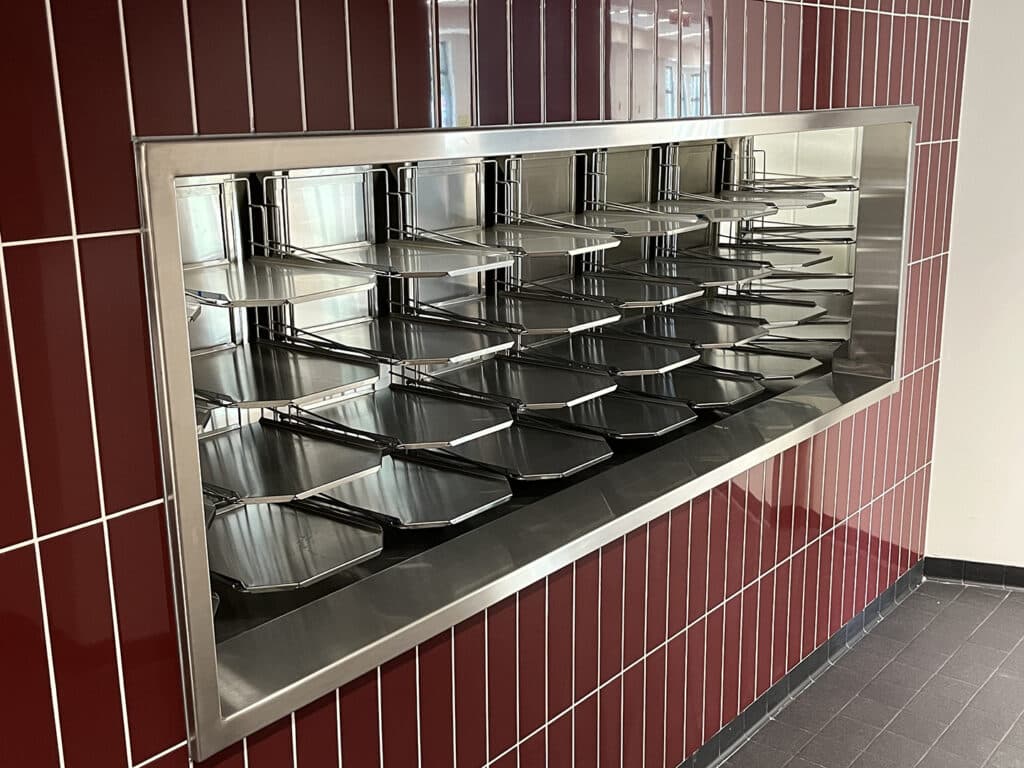

Soiled Dish Accumulator
Gates soiled dish accumulator systems embody the innovation for which the company is known. Suited for corporate, hotel, school, or hospital environments, these heavy-duty systems shine where high volume soiled dish management capacity is required in a limited footprint.
Gates accumulators can be configured with between 6 to 23 electro-polished, stainless steel carriers with either 3, 4, or 5 tray tiers. These systems also feature two photo-eye limit switches to prevent property or personal injury should trays be improperly loaded on the carriers.
Features
- System is engineered to require minimal maintenance.
- Stainless steel chain and 90V D.C. drive motor provide superior pulling power for heavy loads.
- Carrier chain adjusts automatically for stretch, meaning no half links and no periodic adjustments are necessary.
- Carriers are mounted to chain on 7.5” centers to provide stability on turns with no wobbling.
- Dual PVC wheels with stainless steel ball bearings on rear of carriers provide smooth operation.
- Self-adjusting guide band for carrier rotation.
- Double reduction gearbox uses synthetic oil rated for 50,000 hours of service.
- System mounts on a common table with a 2” high pedestal to prevent soiled water seepage and odor. This common table provides a solid top, with no seams or turn ups at the conveyor frame.
- Heavy duty, stainless steel channel frame and bracing eliminates the need for multiple H-frames, providing easy cleaning access.
- Stainless steel wire racks lift off for ease of cleaning.
